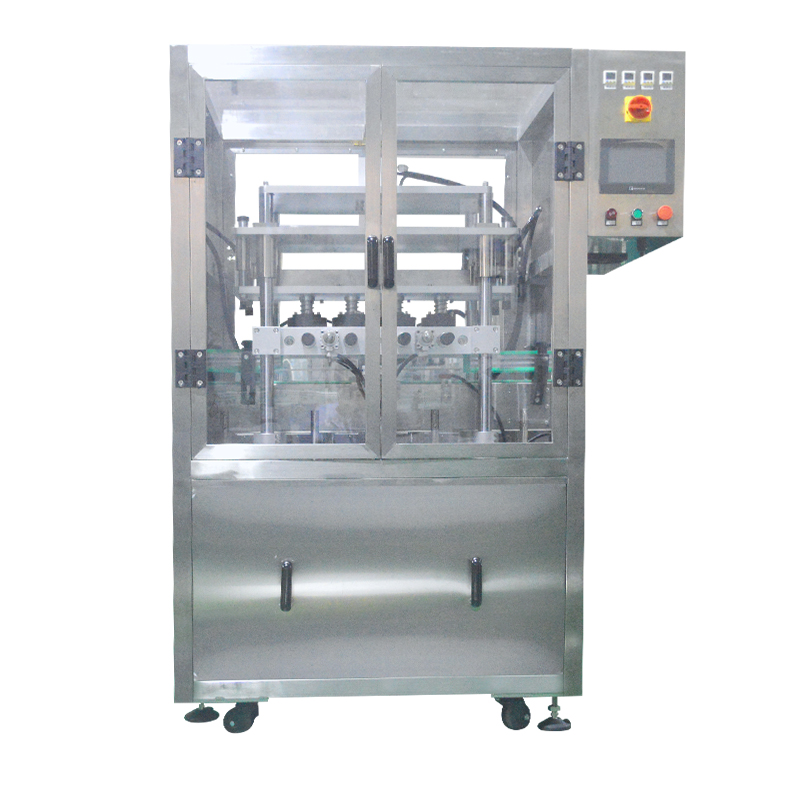

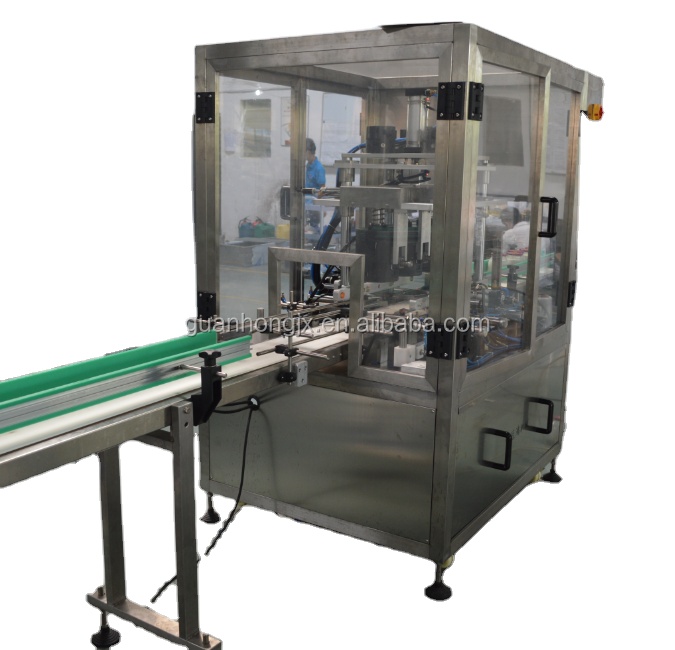

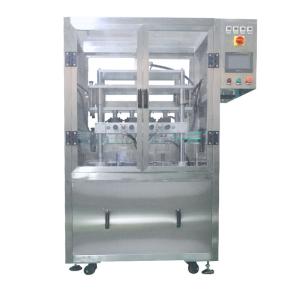

304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production

Type : Capping Machine

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical

Driven Type : Pneumatic

Automatic Grade : Automatic

Voltage : 220V 50-60HZ, 220V 50Hz

Packaging Type : Wooden case

Packaging Material : Wood

Place of Origin : Guangdong, China

Brand Name : Guanhong

Weight : 525 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Capping type : servo tracking type

Suitable specifications : according to the bottle sample provided by the customer

Capping range : 10~55mm

Capping speed : 10~35 bottles/minute

Program control : PLC+touch screen

Material of contact parts : 304# stainless steel

Machine power : 1.5-2.5kw

Air pressure : 06~0.8MPa

Bottle cap type : plastic/ metal round cap, pump head cap, duckbill cap, etc.

Marketing Type : Ordinary Product

Packaging Details : wooden packing

Port : Guangzhou

Supply Ability : 20 Unit/Units per Month

Price : $9,500.00/sets >=1 sets

MOQ : 1 set

Contact Now

Recommend Products
Product Overview

High Speed Factory Direct Selling Automatic Six Head Vacuum Bottle Capping Machine

Equipment overview:

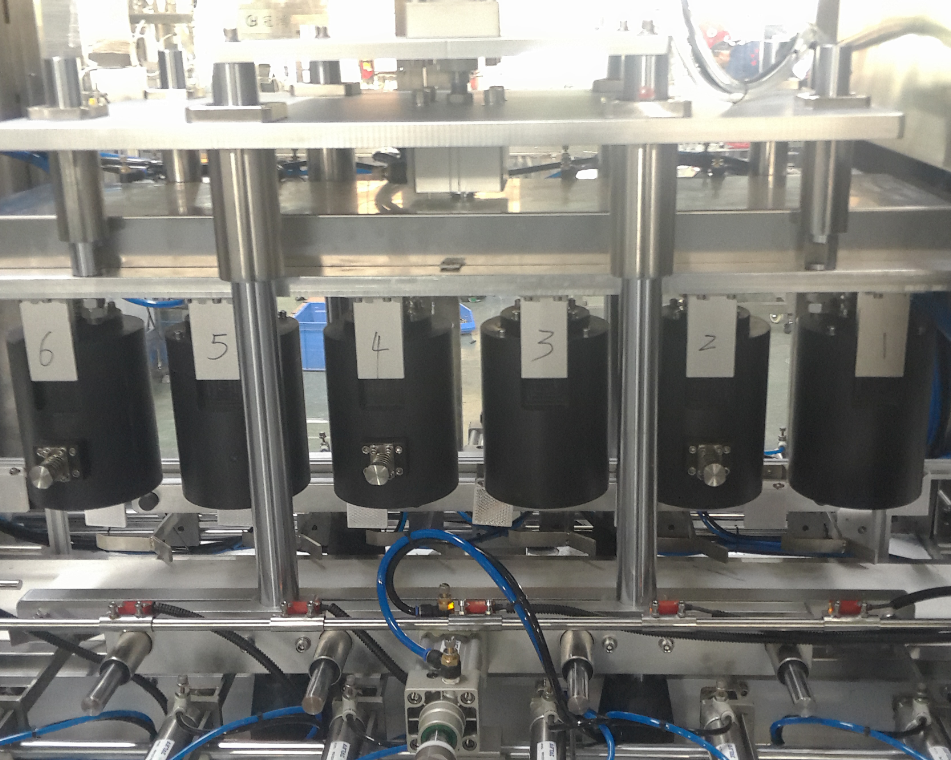

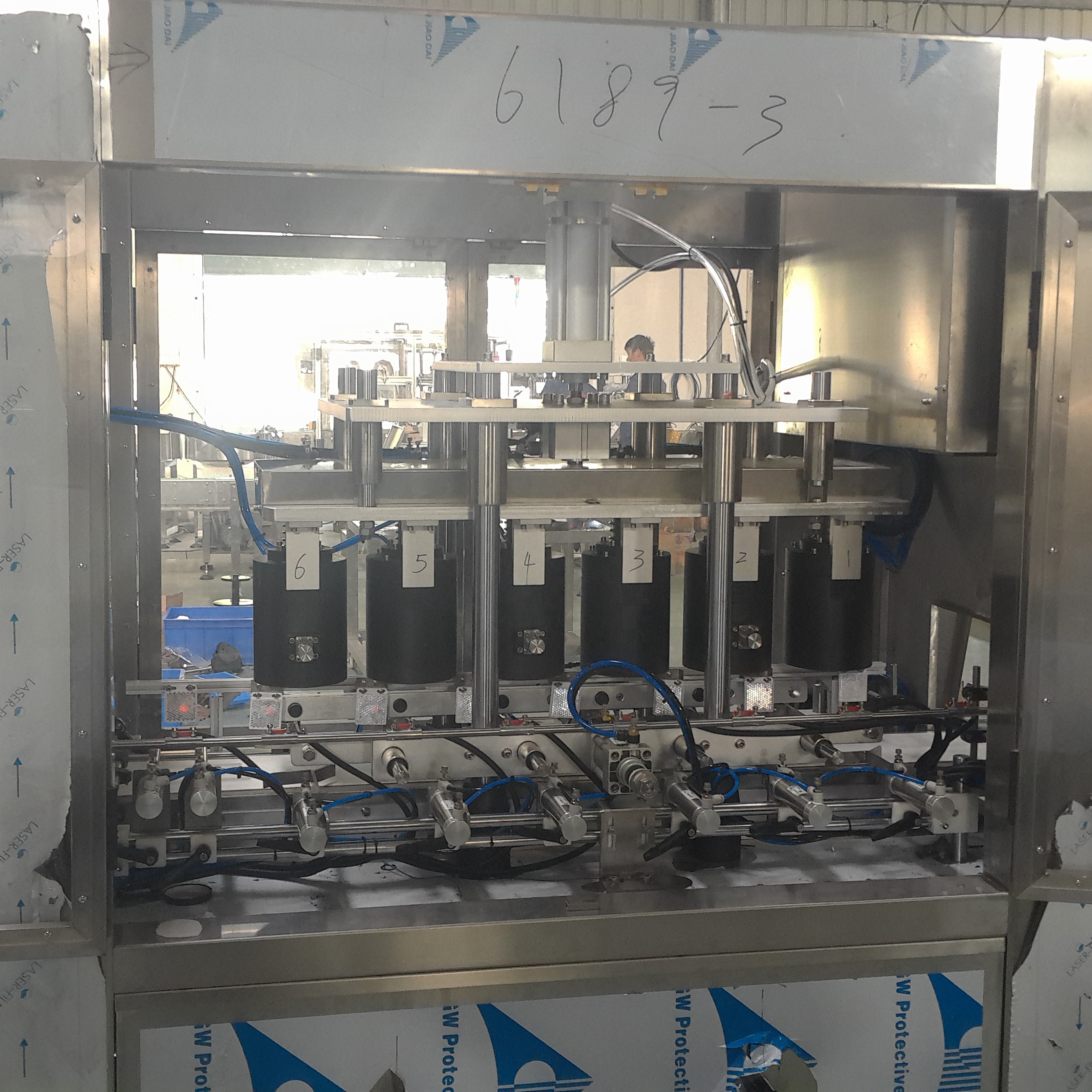

This device uses servo torque screw cap, the torque of the cap can be adjusted. The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function, high degree of automation. Automatic screw capping
for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in
leakproof, anti-theft.
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
Technical Parameters:
1.Capping method: servo torque screw cap, screw cap size can be adjusted
2.Capping range: Φ10~φ55mm (can be customized according to requirements)
3.Bottle height: 50~300mm (can be customized according to requirements)
4.Capping speed: 10~35 bottles/minute
5.Voltage: 220V 50Hz
6.Power: 1.5KW
7.Air pressure: 06~0.8MPa
8.Bottle cap type: plastic/ metal round cap, pump head cap, duckbill cap, etc.
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production

304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production

304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production

304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
Product Paramenters
NO.
Item
Data
1
Capping range
Φ10~φ55mm (can be customized according to requirements)
2
Capping height
Φ10~φ55mm (can be customized according to requirements)
3
Screw capping form
servo torque screw cap, screw cap size can be adjusted
4
Capping head
1 head
5
Speed
10~35 bottles/minute (Increasing capping heads can increase the speed)
6
Machine power
1.5KW
7
Voltage
AC220 50HZ
8
Pressure
0.6-0.8Mpa
9
Program control
PLC+ touch screen
Company Profile
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
Packaging & Delivery
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
Customer Photos
304 Stainless Steel Six Head Vacuum Bottle Capping Machine for High Speed Production
FAQ
Q: Is your company a factory?
A: Yes, we are factory that located in Guangzhou city, China.
2: Q: Do you have certificates ?
A: Yes. CE, ISO 9001, GMP quality, etc, if you have other requirements we can also make it.
3: Q: What are the payment methods?
A: T/T, L/C at sight, Western Union, etc
For regular order, 50% as advance payment, 50% as balance before delivery.
4: Q: What's the lead time ?
A: Usually around 15 to 30 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM. We can customize the production line based on your special requirements
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have express account, you could pay freight charge directly to our company account before shipping.
7: Q: Deliver goods by air or by sea ?
A: Both are okay, which depends on you, usually shipping by sea particularly for big order.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, please feel free
to contact us.
